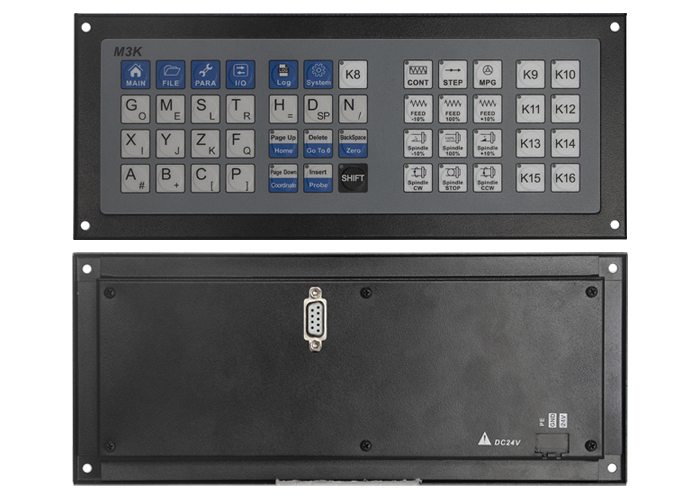

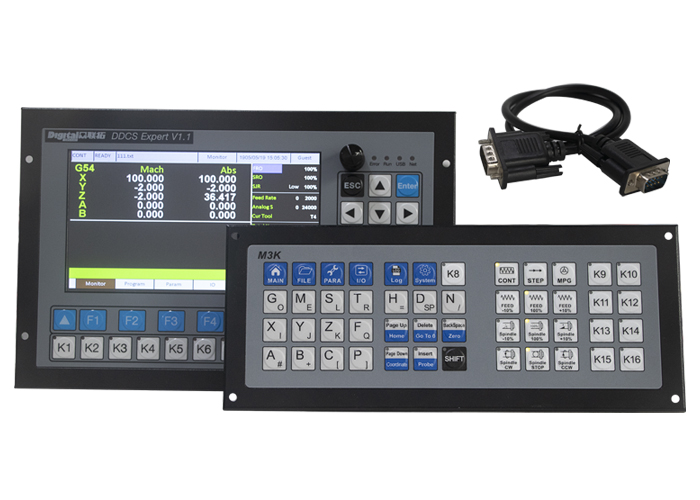

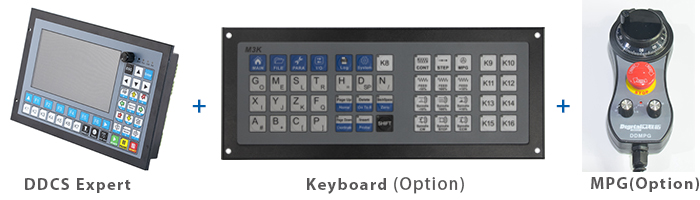

Product configuration

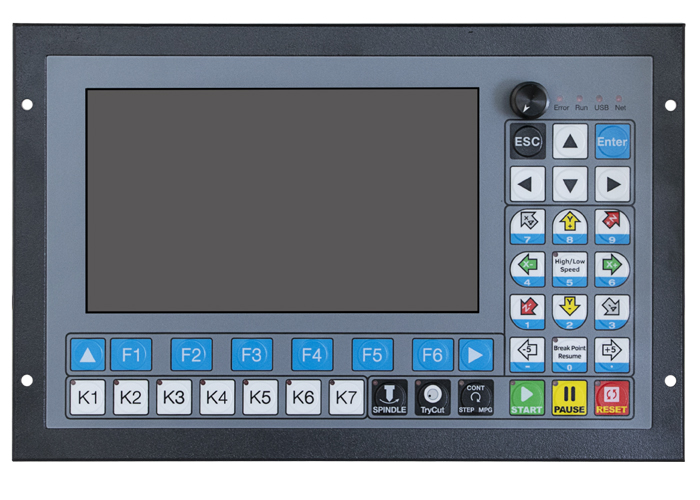

Main parameter

1) Max. 5 Axis;2-4 Axis linear interpolation,any 2 axis circular interpolation;

2) 7 inch full color display screen;resolution ratio: 1024*600,40 operation keys;

3) 24 photoelectric isolated digital inputs,21 photoelectric isolated digital outputs;

4) Analog spindle control 0-10V spindle control,also support PWM Output;

5) Magazine type:Supports multiple spindle mode,support straight Tool Magazine,gantry type Magazine,disk type magazine;

6) Probe Mode:Support auto-probe and manual probe;Support Probe of Fixed position of tool sensor,Probe of Floating tool sensor,first probe/second probe;

7) Backlash compensation methods:direction gap compensation,radius gap compensation,length compensation;

8) Interpolation Algorithm:S type,circular hard algorithem,circular soft algorithm;

9) Language: Chinese,English;

10) Software Alarms: Program Error,operation Error,overtravel Error,Driver Error and so on;

11) Network: Support file share and online machining the remote files by Ethernet;

12) Spindle control mode,Multi-speed (4 lines 16 kinds speed);

13) Compatible with standard G-code,support popular CAD/CAM software,such as ArtCam,MasterCam,ProE, JDSoft SurfMill ,Aspire,Fusion 360 and so on;

14) The control system can preview the processing path before machining,and it makes the system more steady,working smoothy and precise;

15) Support high speed machining in continuous Polyline segment,system can choose a most efficient algorithm automatically from different kinds Polyline segment algorithm;

16) Support un-limited size file for machining;

17) Support Breakpoint resume, “Power Cut” recovery,Try Cut, Start from Nearest Point,Start from the specific line;

18) Support time-lock function;

19) Support 4 kinds operation rights:visitor,operator,admin,super admin;

20) Support function of “Try cutting”(handwheel guiding) and “Single-stage processing mode” and so on;

21) Support the fuction of Back to orignal point

21) The Power Supply for the controller is 24VDC, minimum Current is 0.5A;

22) The Power Supply for IO Port is 24VDC,minimum current is 0.5A;By the IO power supply,system already supply the power for IO ports.So no need the external power supply for IO port anymore.

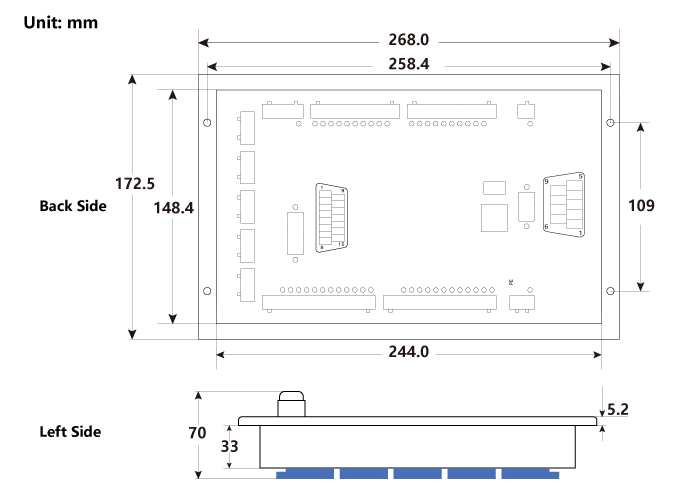

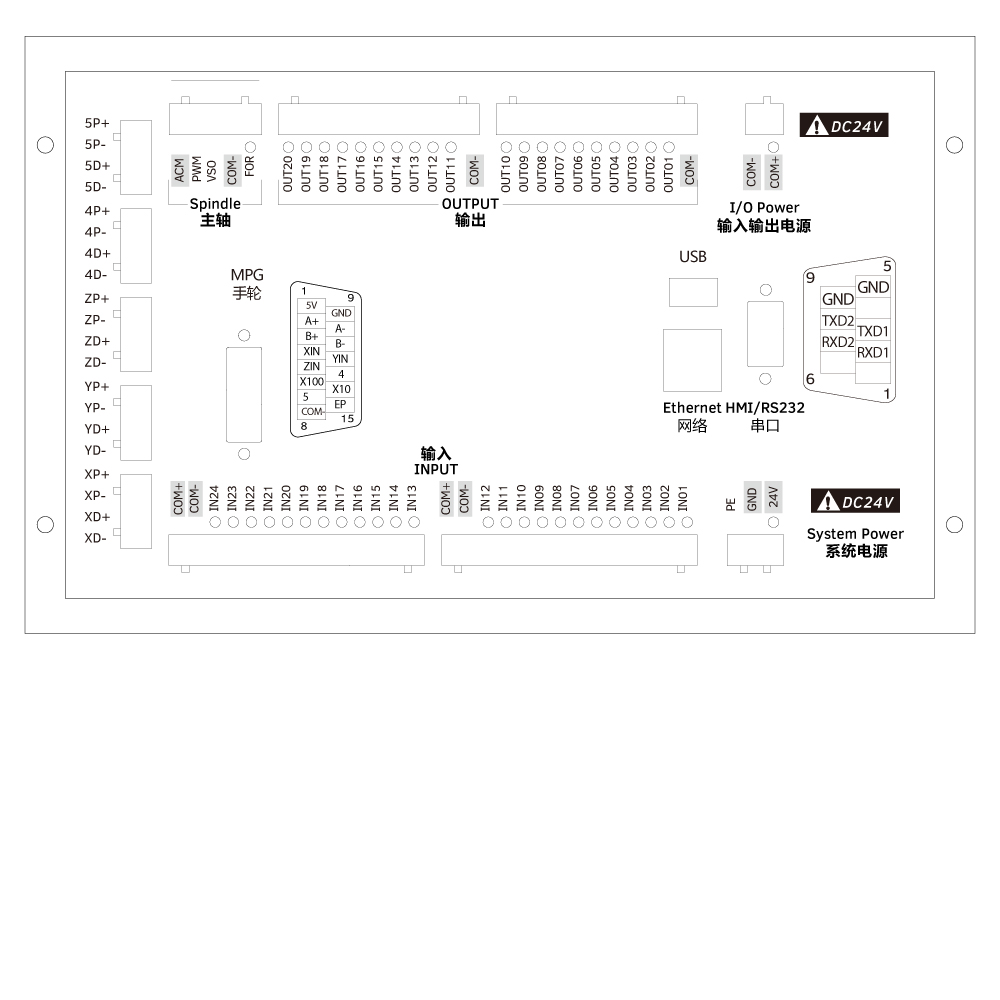

Wiring diagram
