The power supply input problem of DDCS V3.1

Questions:

I bought a DDCS V3.1 and I have servo driver. I am made connection between DDCS and servo driver/MPG/Spindle but there is no movement.


Answer:

DDCS V3.1 controller need two power supplies to work properly.

One is for controller system and one is for IO port.Only when with IO power is supplied,the Input and Output signals,the MPG can get power to work.

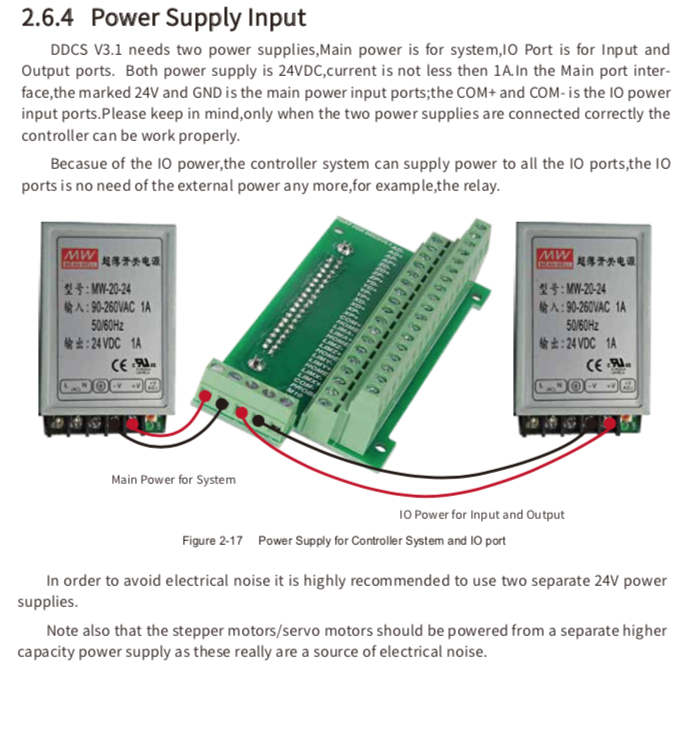

The power supply input problem of DDCS V3.1(图1)
